Industrial Firewalls
Check Point Quantum Rugged appliances keep industrial sites, manufacturing floors and mobile fleets connected and secure. The fanless solid-state design operates from -40°C to +75°C, ideal for power and manufacturing plants, oil & gas facilities, maritime fleets and building management systems. Field devices connect to the Rugged LAN switch and the gateway links to OT management networks via copper and fiber Ethernet plus integrated Wi-Fi, LTE and 5G cellular.
Key Features
- Secure SCADA and ICS environments: identifies and secures 70+ standard and proprietary SCADA/ICS protocols (Modbus, BACnet, CIP, DNP3, IEC-104, IEC 61850, MMS, OPC, Profinet, Siemens Step7 and more; 1,800+ protocol commands)
- Network reliability: Layer 3 routed or Layer 2 bridge mode, site-to-site and client-to-site VPNs, dynamic routing (OSPF, BGP, RIP, PIM)
- Rugged form factor: certified IEEE 1613 and IEC 61850-3 for heat, vibration and EMI immunity; maritime certified per IEC-60945, IACS E10 and DNV-GL-CG-0339; IP30
- Highly available hardware: wall or DIN-rail mounting, redundant power, HA clustering, dual-SIM wireless modem (5G peak 4.5 Gbps downlink)
- IT/OT segmentation and virtual patching: automatically activates IPS protections for known CVEs on unpatched ICS systems without disrupting critical processes
- Zero-touch deployment and central management: cloud-based provisioning via web UI templates, plus IoT Protect risk analysis and auto-segmentation for IIoT

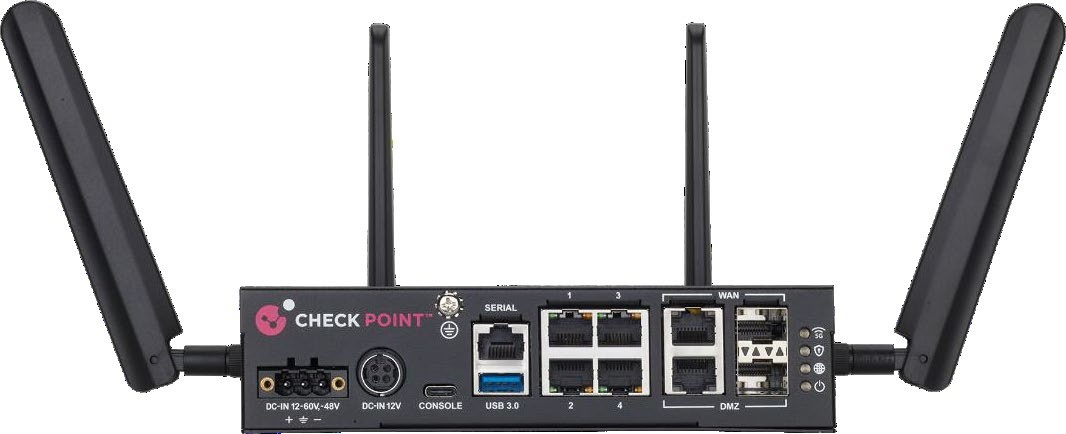

Models & Performance (1575R / 1595R)
| Specification | 1575R | 1595R |
|---|---|---|
| Threat Prevention | 400 Mbps | 400 Mbps |
| Next Generation Firewall | 830 Mbps | 830 Mbps |
| IPS Throughput | 1,000 Mbps | 1,000 Mbps |
| Firewall Throughput | 1,970 Mbps | 1,970 Mbps |
| VPN AES-128 Throughput | 1,100 Mbps | |
| Concurrent Connections | 1,000,000 | |
| Connections per Second | 14,600 | |
| LAN Ports | 8×1GbE | 4×1GbE |
| DMZ Port | — | 1×1GbE copper/fiber |
| Wireless (optional) | Wi-Fi 6 (802.11ax 3×3) + LTE Cat13 dual SIM | 5G sub-6 dual SIM (4.5Gbps down / 660Mbps up) |
| Serial Port | 1×DB9 (RS232, RS422/485 ready) | 1×RJ45 (RS232) |
| Dimensions (W×D×H) | 150×150×90 mm | 150×170×42 mm |
| Weight | 1.8 kg | Wired 1.21 kg / 5G 1.36 kg |
| Operating Temperature | -40°C ~ 75°C (storage -45°C ~ 85°C) | |
| Power Consumption (Max) | Wired 25.1W / Wi-Fi-LTE 30.7W | Wired 26.8W / 5G 29.5W |
| Power | Redundancy supported; DC 12~60VDC / -48VDC; AC 110-240VAC (industrial 120W adapter sold separately) | |
Ordering Information
| SKU | Description |
|---|---|
| CPAP-SG1595R-SNBT | 1595R Ruggedized NGFW appliance with 1-year SNBT subscription |
| CPAP-SG1595R5G-SNBT | 1595R 5G Ruggedized NGFW appliance with 1-year SNBT subscription |
| CPAP-SG1575R-SNBT-DC | 1575R Ruggedized NGFW appliance with 1-year SNBT subscription |
| CPAP-SG1575RWLTE-xx-SNBT-DC | 1575R Wi-Fi/LTE Ruggedized NGFW appliance (xx = Wi-Fi region code, China = -CN) |
Service bundles: NGFW / NGTP / SNBT (firewall, VPN, application control, IPS, URL filtering, antivirus, Anti-Bot, sandboxing, zero-phishing); IoT and SD-WAN available à la carte.
Source: Check Point Quantum Rugged Series Security Gateways Datasheet (July 22, 2025).
