29200 Appliance
Check Point Force 29200 Data Center Firewall is purpose-built for demanding data centers. The modular 2RU platform delivers up to 1.4 Tbps firewall and 63.5 Gbps threat prevention throughput with integrated AI/ML security, power efficiency and space savings.
Key Benefits
- Complete AI Security: discover and secure all the AI apps, LLMs, agents and MCP servers in your network
- Top Security Effectiveness: Check Point ranks #1 in third-party malware, phishing and vulnerability exploit blocking benchmarks (Miercom, NSS)
- Hyperscale Network Security: on-demand expansion, load-balanced firewall clustering and resilient access to mission-critical applications
- Unified Management & Ops Efficiency: increase protection and reduce TCO with a consolidated security architecture
- Network Resilience & Power Efficiency: low power per Gbps of threat prevention cuts power costs in half versus similar models
Performance
| Metric | Enterprise Test Conditions | RFC Lab Test |
|---|---|---|
| Firewall throughput | 500 Gbps | 1,400 Gbps (1518B UDP) |
| Next Generation Firewall | 165 Gbps | — |
| Threat Prevention | 75 Gbps | — |
| IPS | 235 Gbps | — |
| VPN (AES-GCM 1452B) | — | 130 Gbps |
| Connections per second | — | 1,500,000 |
| Concurrent connections (Base/Plus/Max) | — | 30M / 48M / 67M |
| Firewall latency (avg) | — | 1.85 μs |
| HTTP/TLS inspection | — | 28,100 / 18.6 Gbps / 25.04 Gbps |
Platform Highlights

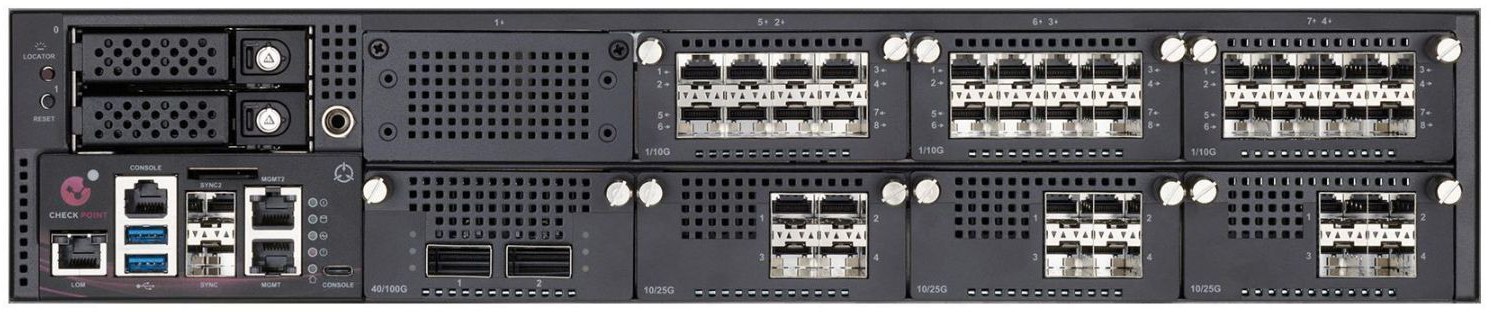

- Modular 2RU chassis with 7 network I/O slots: 2x40/100G, 4x10/25G and 8x1/10G cards (40/100G card benefits from ASIC-based firewall acceleration)
- Comprehensive security: NGFW, site-to-site & remote access VPN, application & URL filtering, IPS, antivirus & anti-bot, advanced DNS security, sandboxing with file sanitization, agentless zero-phishing
- Flexible, fast HTTPS inspection without impacting internal network performance
- 64 physical cores (128 logical), 128GB RAM (Base) / 192GB (Plus)
- Dual redundant hot-swap power supplies, dual 960GB NVMe RAID-1 storage (Plus)
- Integrated SD-WAN optimization; up to 1024 physical/VLAN interfaces per appliance (4096 with virtual systems)
- High availability: Active/Active L2, Active/Passive L2/L3, ClusterXL, VRRP
Physical Specifications
| Item | Specification |
|---|---|
| Enclosure | 2RU |
| Dimensions (WxDxH) | 442 × 610 × 88 mm |
| Weight | 19.1 kg |
| Power | Dual AC 1300W, avg/max consumption 600W / 999W |
| Operating | 0°C to 40°C, humidity 5% to 95% |
| MTBF | > 10 years |
| Certifications | CB IEC 62368-1, CE, UL, FCC, ROHS, REACH, WEEE, ISO14001 |
Ordering Information
| SKU | Description |
|---|---|
| CPAP-SG29200-SNBT | Base: 2x 1/10GbE copper mgmt, 2x SFP28 sync, 8x SFP+, 128GB RAM, 1x 960GB NVMe, dual AC PSUs, telescopic rails, SandBlast subscription 1 year |
| CPAP-SG29200-PLUS-SNBT | Plus: 16x SFP+, 4x 10/25GbE SFP28, 2x 100/40GbE QSFP28, 192GB RAM, 2x 960GB NVMe, LOM, 5 virtual systems, SandBlast subscription 1 year |
| CPAP-SG29200-PLUS-MHS-SNBT | Maestro/MHS HyperScale: 2x 40/100GbE QSFP, 2x 100GbE DAC 3m, 192GB RAM, 2x 960GB NVMe, LOM, SandBlast subscription 1 year |
| CPSB-SNBT / NGTP / NGFW-29200-1Y | Next Generation Threat Prevention / SandBlast / NGFW subscription renewals (1 year) |
| CPSB-IOTP-29200-1Y | Check Point IoT Protect subscription (1 year) |
Source: Check Point Force 29200 Data Center Firewall Datasheet (July 2026). Threat prevention figures measured with firewall software R82.20 or later.
